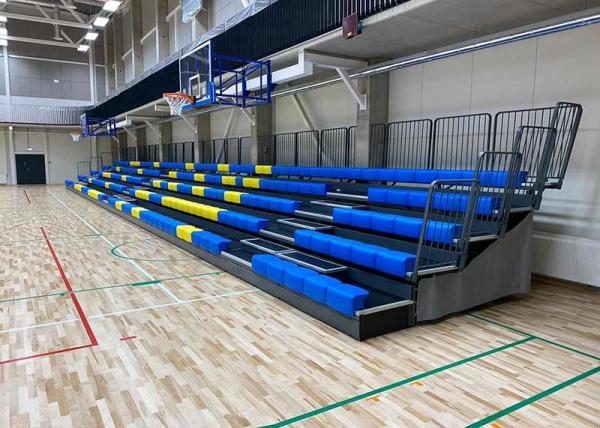

Retractable Grandstands / Retractable Seating with Side Rails for
Stadium
Description:
The Echo Polymer Bench offers comfortable, generous seat spaces
ergonomically contoured for spectator comfort. Designed with
anatomically contoured seat surface using blow molded construction
that allow form-fit deflection for maximum spectator comfort.
Cantilevered to the rear to provide not less than 75mm smooth toe
space beneath the seat. The rear and underside of the Echo Bench
has a smooth continual flowing line to aide with the cleaning and
up keep of the deck space.
Quick Detail:
| Row Depth | 650 mm- 850 mm/Customized |
| C/C Width | 460mm |
| Backrest | Available Upon Request |
| Row Riser height | 250mm-300 mm/Customized |
| Stair width | 920mm/1000mm/Customized |
| Seat centers | 460mm |
| Material of the frame | Steel with powder coating decking: anti-slip plywood deck |
| Material of the seat | HDPE |
| Optional color | refer to pantone color swatch |
| Operative method | Manual or Power Operation |
Understructure Introduction
A.Frame System:
1) Wheels: Wheels with non-marking poly urethane face to protect
wood and synthetic floor surfaces, with molded-in metal bush and
bearing to fit a10mm diameter axles secured with C Clips.
2) Slant Columns: Tubular Shape Steel (RHS).
3) Deck Stabilizer: Steel components bolted to nose and riser at
three locations per section. Interlocks with adjacent stabilizer on
upper tier using low-friction nylon roller to prevent separation
and misalignment.
4) Deck Support: Securely captures decking for entire length of
section.
B.Deck System:
1) Section Lengths: Each bank shall contain sections not to exceed
5980mm in length with a minimum of two supporting frames per row,
each section.
2) Rear Riser: Continuous roll formed steel members
3) Nosing: Continuous Tubular Steel Section (RHS)
4) Deck End Overhang: Not to exceed frame support by more than
1715mm.
Features:
1. Enhance the look of you new or existing facility
2. The elevated seating position improves comfort, provides extrs
leg room
3. Isolates the patron from sitting on foot traffic areas of the
seting unit.
4. Bright warm colors or choose your own combination of colors from
our range
5. comfortable, generous and easy to installation.
