Multisports Telescopic Modular Grandstands, Retractable Spectator
Seating
Quick Detail
| Product Name | Modular Grandstands Polymer Bench |
| Row Depth | 650mm-850mm |
| C/C Width | 460mm |
| Row Riser Height | 250mm-300mm |
| Stair Width | 920mm/1000mm |
| Seat Center | 460mm |
| Material of the Seat | HDPE |
| Operative Method | Manual or Electric Operative |
| Optional Color | Refer to pantone color swatch |
| Test Report | EN13200-5 |
Description

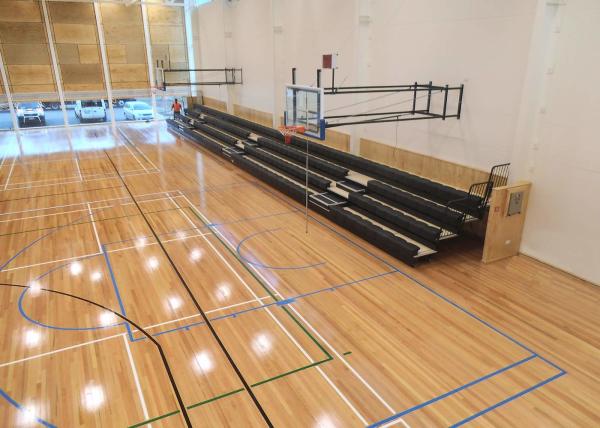

Burgeon retractable seating is quite to operate, strong in its
design and widely used for multifunctional sport hall. Every parts
including our slant frame engineering geometry has been designed to
enhance the system's operation strength and stability.
Burgeon provide various retractable seating solutions to meet the
requirements of project. Wall attached unit retractable seating
system are supplied from 3 to 30 tiers, are extremely adaptable and
efficiently recover floor space, allowing you to easily get the
most out of your facilities at all time. Portable untis can be
moved around within the space using a pair of lifting dollies or
for ultimate versatility our integrated 360 swivel dollies allow
your facility staff to move the units in any direction with a
minimum of effort.
Options:
- Seat numbers
- Contrasting color end panels
- VIP Programme - Programme available in your color choice
Understructure Introduction
A.Frame System:
1) Wheels: Wheels with non-marking poly urethane face to protect
wood and synthetic floor surfaces, with molded-in metal bush and
bearing to fit a10mm diameter axles secured with C Clips.
2) Slant Columns: Tubular Shape Steel (RHS).
3) Deck Stabilizer: Steel components bolted to nose and riser at
three locations per section. Interlocks with adjacent stabilizer on
upper tier using low-friction nylon roller to prevent separation
and misalignment.
4) Deck Support: Securely captures decking for entire length of
section.
B.Deck System:
1) Section Lengths: Each bank shall contain sections not to exceed
5980mm in length with a minimum of two supporting frames per row,
each section.
2) Rear Riser: Continuous roll formed steel members
3) Nosing: Continuous Tubular Steel Section (RHS)
4) Deck End Overhang: Not to exceed frame support by more than
1715mm
Accessories:
1) Variable Row 1: Provide first row recoverable modular seating
units to be utilized for both wheelchairs and able-bodied persons.
2) Non-Slip Tread: Provide at front edge of each aisle step locatio
a non-slip tread surface. Paper type of strip are not acceptable.
3) Foot Level Aisles: Provide deck level full with vertical aisles
located as indicated.
4) Portable Access Stair: Provide portable stair units with hand
rails.
5) Carpeted Decks: Provide at decks and steps carpet as selected.
Color to be of manufacturee's standard selection.
6) End Curtain: Furnish, deliver and install closure curtain panels
at each exposed deck end in accordance with the drawing.
Features
- Automatic or manual operative
- Fire Resistance
- Easy Operation
- Human engineering design
- Customized color
- Anti-rust frame
Application
Sports hall
Gyms
Event center
Multipurpose center
Multipurpose indoor athletic venues
